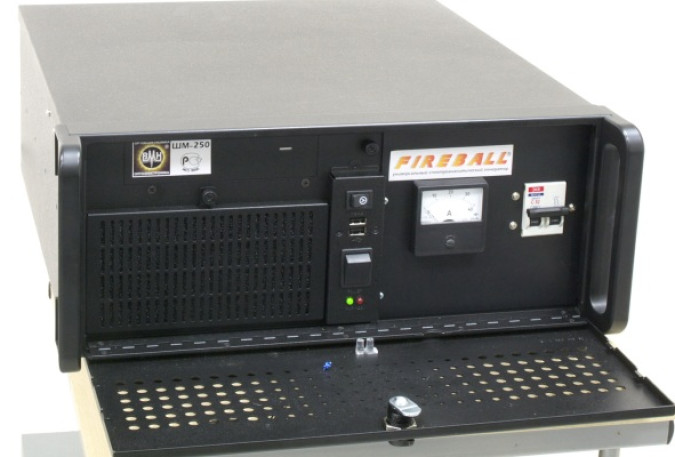

«Sharovaya molniya» spectroanalytical generator



Generators and stands are designed to excite the atomic spectra of samples for qualitative and quantitative atomic-emission spectral analysis of various materials. They are a universal devices that are a part of atomic emission spectral systems along with generators of arc and/or spark discharge.

The generator is designed to produce an electric arc and spark discharge in atomic-emission spectral analysis systems. It is designed specifically for use in the spectral analysis of the complex composition samples for the simultaneous impurities and alloying components detection of of a wide range of concentrations.

"Sharovaya molniya" is a reliable high-tech and versatile instrument designed on the basis of power IGBT-transistors. Embedded microcontroller provides a simple operation control and allows the analyst to set optimal modes of spectrum excitation, including a change of polarity, duration and current directly during a single exposure. Sequential spark and arc operation modes during a single exposure allows you to simultaneously obtain high convergence of the main components of the sample and low detection limits for impurities.

Operation modes:

  • arc modes: AC / DC arc, interrupted arc and the arc with a step-predetermined polarity current up to 40A;
  • spark modes: variable or stable polarity with a frequency range from 1Hz to 1000Hz.

Technical specifications

Name

Sharovaya molniya
ShM-40

Sharovaya molniya
ShM-250

Arc current range, A

1 ÷ 40

1 ÷ 40

Amplitude of the current pulse, A

1 ÷ 40

1 ÷ 250

Arc current discreteness, A

0,1

Discharge pulse frequency, Hz

1 ÷1000

Duty cycle, %

1 ÷ 100

Current stabilization precision, %

0,1

Modes amount per exposition

8

Discharge step duration, s

1 ÷ 1000

1 ÷ 255

Discharge current rise rate, A/µs

0,1

50

Discharge impulse duration, A/µs

20

20 ÷ 2000

Maximum impulse energy, J

1

10

Operating AC output frequency, Hz

1 ÷ 500

Operating frequency range of the unipolar output, discontinous current, Hz

1 ÷ 1000

Current stability (output current change at a power supply or load resistance change by 10%), %

1

Energy conversion efficiency (at 800W, active load 2Ω), %

90

Maximum output power, W

2000

Maximum power consumption, W

2200

Type of control

computer

Power supply

monophase, 220V, 50Hz

Dimensions, mm

520´450´185

Weight, kg

20

30
