The Grand-IСP spectrometer

The spectrometer we produce are coming with MAES analysers in accordance to analytical task.
Systems based on the spectrometers that we produce are a measuring devices for a fractions of total mass of detected elements of substances and materials (№ 33011-06 in Russian state registry of measuring devices).

The delivery set consists of spectrometer with MAES preinstalled in it, stand with arc/spark semiconductor generator, a computer, a table and a chair, printer stand, and some additional equipment as well - probe preparation machine, calibration probe sets for initial setup and routine control, etc.

To eliminate temperature changes, excess light and dust, spectrometers can be equipped with a special protective case. Inside of such case there is a dust-catcher and a noiseless fan, which creates an excessive air pressure and a ventilation of an inside area.

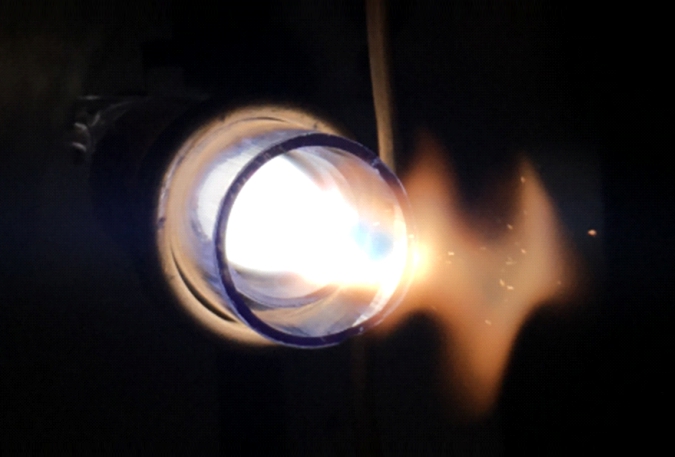

Highly stable source of ICP plasma with argon flow rate from 8 l/min. Plasma observation radial, axial, dual (auto-switching). Radial observation is recommended for extending the dynamic range and working with highly mineralized samples and for reducing matrix influences. Axial observation is for determining low values of concentrations.
